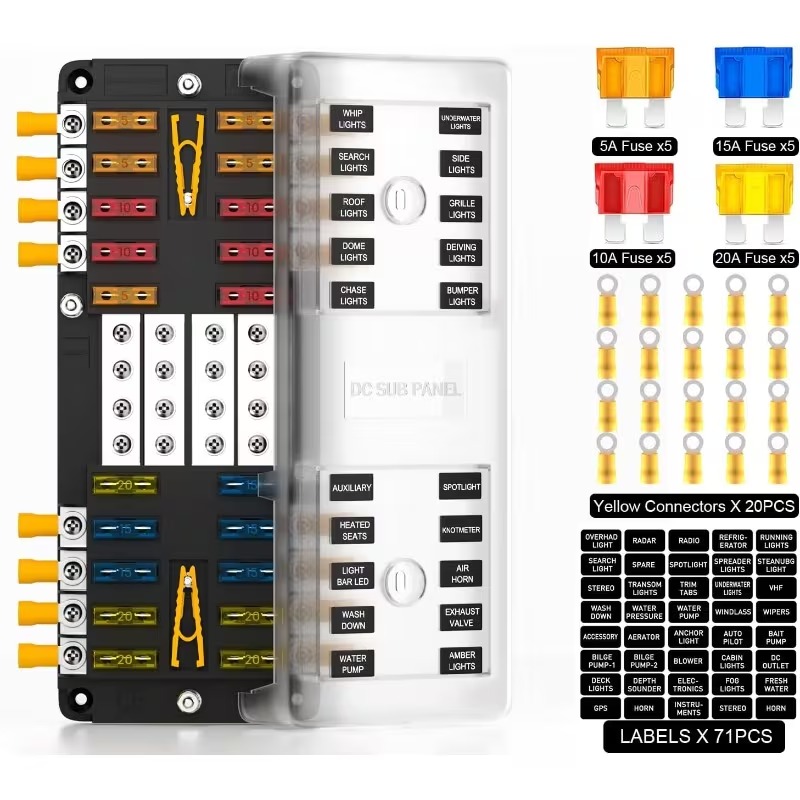

16-Way Dual Circuit Fuse Box with Fuse Accessories

This 16-way dual circuit fuse box is designed to organize and protect multiple low-voltage electrical circuits in compatible 12V–32V DC systems. The dual power input layout allows separate circuit grouping, making it useful for mixed wiring setups or accessories that need independent control. Each circuit supports standard ATC/ATO blade fuses and helps protect connected devices by disconnecting overload currents when properly rated fuses are installed. The transparent protective cover helps shield the fuse area from dust and light splashes while keeping the circuit labels easy to view. It is suitable for cars, trucks, RVs, trailers, boats, yachts, ATVs, UTVs, and other low-voltage accessory wiring applications.

Product Details:

• Product type: 16-way dual circuit fuse box
• Input voltage: 12V–32V DC
• Maximum current: 30A per circuit / 100A per block
• Fuse type: Standard ATC / ATO blade fuses
• Main line terminal: M5 threaded studs, suitable for #4–6 AWG wire
• Single line terminal: M4 threaded studs, suitable for #12–16 AWG wire
• Material: PBT and PC flame-retardant insulated housing
• Cover material: Transparent polycarbonate protective cover
• Size with cover: 8.12 x 3.26 x 1.49 in
• Included accessories: 5 x 5A fuses, 5 x 10A fuses, 5 x 15A fuses, 5 x 20A fuses, 20 heat-shrink wire connectors, 4 screws, 2 label sticker sheets, 2 fuse pullers, and 1 clear cover
• Suitable for: Vehicle lights, marine lights, refrigerators, communication equipment, monitoring systems, alarms, power distribution units, and auxiliary electrical accessories
• Use note: Match each fuse rating to the connected circuit load before installation.
